80*100mm high hot dip galvanized gabion net for ditch protection
High heat plated gabion mesh material:
(1) Galvanized steel wire
(2) Zinc -5% aluminum (10% aluminum) - mixed rare earth alloy steel wire
(3) galvanized steel wire coated
(4) Zinc -5% aluminum (10% aluminum) - mixed rare earth alloy steel wire coated
Gabion network common specifications:
1, mesh aperture: 60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm

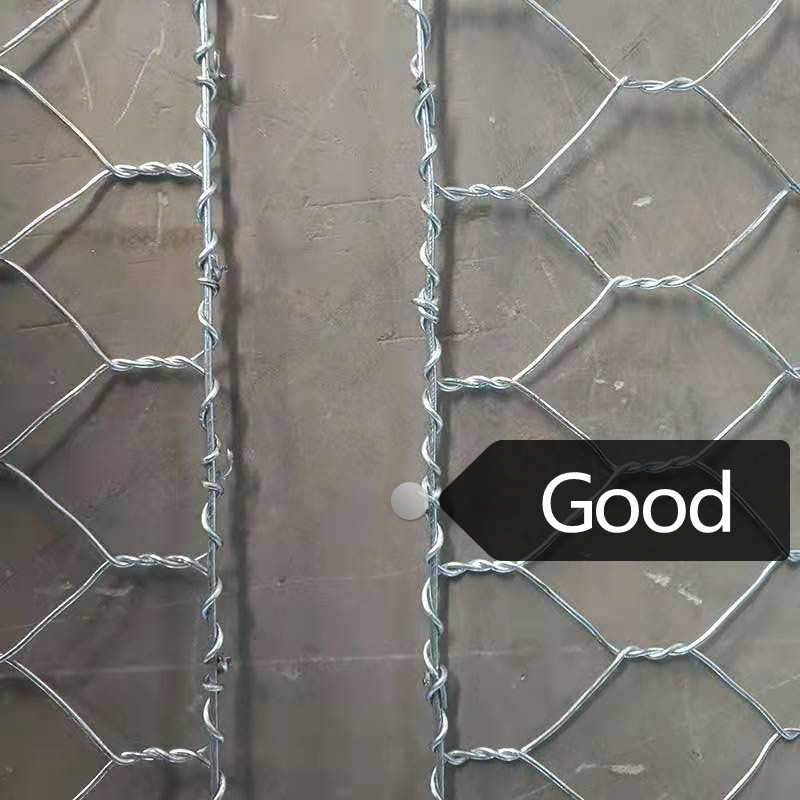

The length of the double stranded part shall not be less than 50mm to ensure that the metal coating and PVC coating of the stranded part of the steel wire will not be damaged.
2, gabion mesh wire diameter: stone cage mesh is divided into three kinds of wire diameter - mesh wire, edge wire, tie wire
(1). The range of mesh wire is 2mm-4mm
(2). The edge wire is generally larger than the mesh wire, thick 0.5mm-1mm
(3). The binding wire is generally smaller than the net wire, and the most common is 2.2mm
3, wire tension: not less than 38kg/m2 380N/mm
4. Surface treatment
(1) Electric galvanizing.
(2) Hot galvanizing.
(3). Galfan (zinc aluminum alloy). This is divided into two materials, zinc -5% aluminum - mixed rare earth alloy steel wire, zinc -10% aluminum mixed rare earth alloy steel wire. Super anti-corrosion
(4) PVC plastic coated. The thickness of the plastic wrap is generally 1.0mm, for example, 3.7mm after the 2.7mm wrap. Strong anti-corrosion
| Type | double twisted woven wire mesh |
| Hole Shape | hexagonal |
| Material | low carbon steel wire ,heavy galvanized wire ,galfan wire ,pvc coated wire |
| Aperature | 6×8cm ,8×10cm,10×12cm ,12×15cm |
| Size (L×W ×H) | 2×1×0.5M ,2×1×1M ,3×1×0.5M ,3×1×1M ,6×2×0.3M |
| Wire Guage | 2.0mm-4.0mm |
| Surface Treatment | Galvanized /PVC Coated |
| Application | flood control ,retaining wall |
| Features | corrosion resistance ,easily assembled |
| Color | silver or black/green ,ect |
FAQ:
Q: Are you a trading company or manufacturer ?
A: We are factory. We are manufacturer of Wire Mesh .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100000USD, 100% in advance.
Payment>=100000USD, 30% T/T in advance ,balance against copy of B/L.
Super toughness
The flexible structure can adapt to the change of the slope without being damaged and has better safety and stability than the rigid structure
Strong resistance to scour
Stone cage net filling stone spread at the bottom of the riverbed can effectively resist river erosion can withstand the flow speed can reach 6M/S to effectively prevent soil erosion
Protect the river bank
Ecological grid structure applied to river bank and slope toe protection is very successful and can effectively help control and guide rivers and floods in the long term
